Three low budget double floor house plans under 1000 sq.ft. with full plan and elevation.

1000 Sq.ft 3 Bedroom Double Floor House Plan and Elevation

Three simple and low budget 3 bedrooms two storey house plans under 1000 sq.ft (92.93sq. mt.) These 3 house plans are suitable for those with very limited plot areas therefore, these are the house plans designed for such people. We can build these house designs within 3 cents of the plot area. These three house plans are simple, cost-effective, and well-designed for easy and fast construction in a short time.

Plan 1. Three Bedroom 1000 Sq.ft. House Plan in 2.56 Cents

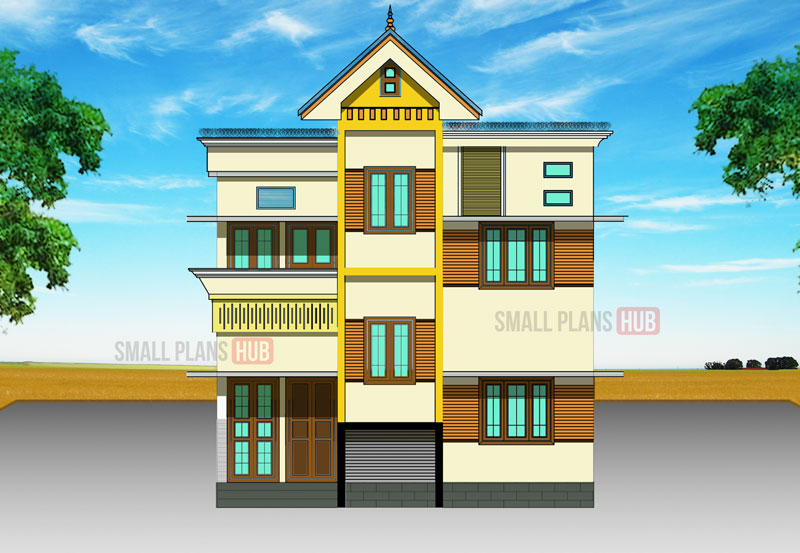

1000 Sq.ft 3 Bedroom Double Floor House Plan and Elevation

See more Kerala style house Plans:

1000 Sq.ft 3 Bedroom Double Floor - Ground Floor Plan

Ground Floor Features of the Plan

  • One bedroom with common toilet
  • Entrance sit out positioned on the left side
  • Separate dining and drawing hall
  • Medium size kitchen for daily cooking
  • This is a north-facing house plan

Room Specifications

  • Sit out             -    30 sq.ft.
  • Drawing         -    88 sq.ft.
  • Dining            -    90 sq.ft.
  • Bedroom        -    85 sq.ft.
  • Toilet 1           -    23 sq.ft.
  • Kitchen           -   58 sq.ft.

All room sizes are approximate

1000 Sq.ft 3 Bedroom Double Floor - First Floor Plan

First Floor Features of the Plan

  • Master bedroom with one attached toilet
  • 1 Medium size bedroom with one common toilet
  • An upper living area
  • Medium size balcony
  • Open terrace

Room Specifications

  • Master bed       -    90 sq.ft.
  • Bedroom 1       -    85 sq.ft.
  • Living              -    60 sq.ft.
  • Toilet 1             -   25 sq.ft.
  • Toilet 2             -   25 sq.ft.
  • Balcony            -   30 sq.ft.

All room sizes are approximate

1000 Sq.ft 3 Bedroom Double Floor Plan and Site Plan

Plot Size  -  35.09 ft.x 31.81 ft.

Area details

Outer to outer length of the plan (front to back)   -     7.50 m. (24.60 ft.)

Outer to outer width of the plan                            -     6.20 m. (20.33 ft.)
Ground Floor Plinth Area of the plan                   -    46.46 sq.m. (500 sq.ft.)

First Floor Plinth Area of the plan                        -    46.46 sq.m. (500 sq.ft.)

Total Area of the plan                                         -  92.93 sq.m. (1000 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -    9.70 m. (31.81 ft.)

Minimum Width required for the plot Width   -    10.70 m. (35.09 ft.)

Land area required for this Plan                   -  1.03 Are or 124.02 Sq.yard (2.56  Cents)

Plan 2. Three Bedroom 1000 Sq.ft. House Plan in 2.48 Cents

1000 Sq.ft 3 Bedroom Double Floor Plan and Ground Floor Plan

Ground Floor Features of the Plan

  • One bedroom with common toilet
  • 150 cm wide entrance sitout
  • Spacious dining section
  • A medium-size living hall
  • Small kitchen for daily cooking
  • This is also a north-facing house plan

Room Specifications

  • Sit out             -    35 sq.ft.
  • Living             -    81 sq.ft.
  • Dining            -   119 sq.ft.
  • Bedroom        -    87 sq.ft.
  • Toilet 1           -    25 sq.ft.
  • Kitchen           -   61 sq.ft.

All room sizes are approximate

1000 Sq.ft 3 Bedroom Double Floor House plan and First Floor Plan

First Floor Features of the Plan

  • 2 Medium size bedrooms with one common toilet
  • Medium size balcony
  • Open terrace

Room Specifications

  • Master bed       -    114 sq.ft.
  • Bedroom 1       -     97 sq.ft.
  • Toilet 1             -    25 sq.ft.
  • Balcony            -    46 sq.ft.

All room sizes are approximate

1000 Sq.ft 3 Bedroom Double Floor Plan and Site Plan

Plot Size  -  39.55 ft.x 27.38 ft.

Area details

Outer to outer length of the plan (front to back)   -    6.15 m. (20.17 ft.)

Outer to outer width of the plan                            -    7.56 m. (24.79 ft.)
Ground Floor Plinth Area of the plan                   -    46.46 sq.m. (500 sq.ft.)

First Floor Plinth Area of the plan                        -    46.46 sq.m. (500 sq.ft.)

Total Area of the plan                                         -  92.93 sq.m. (1000 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -  8.35 m. (27.38 ft.)

Minimum Width required for the plot Width   -  12.06 m. (39.55 ft.)

Land area required for this Plan                   -  1.00 Are or 120.31 Sq.yard (2.48  Cents)

Plan 3. Three Bedroom 988 Sq.ft. House Plan in 2.73 Cents

988 Sq.ft. 3 Bedroom Double Floor House Plan and Elevation

988 Sq.ft. 3 Bedroom Double Floor House Plan and Ground Floor Plan

Ground Floor Features of the Plan

  • Master bedroom with common toilet
  • Spacious dining section
  • A medium-size living hall
  • Medium size kitchen for daily cooking
  • This is an east-facing house plan

Room Specifications

  • Living             -    72 sq.ft.
  • Dining            -   107 sq.ft.
  • Bedroom        -   103 sq.ft.
  • Toilet 1           -    24 sq.ft.
  • Kitchen           -   68 sq.ft.

All room sizes are approximate

988 Sq.ft. 3 Bedroom Double Floor House Plan and First Floor Plan

First Floor Features of the Plan

  • 2 Medium size bedrooms with one common toilet
  • A spacious upper living
  • Open terrace

Room Specifications

  • Master bed       -     87 sq.ft.
  • Bedroom 1       -     72 sq.ft.
  • Upper living     -     64 sq.ft.
  • Toilet 1             -    25 sq.ft.

All room sizes are approximate

988 Sq.ft. 3 Bedroom Double Floor House Plan and Site Plan

Plot Size  -  40.50 ft.x 29.42 ft.

Area details

Outer to outer length of the plan (front to back)   -    6.77 m. (22.20 ft.)
Outer to outer width of the plan                            -    7.85 m. (25.74 ft.)
Ground Floor Plinth Area of the plan                   -    45.91 sq.m. (494 sq.ft.)

First Floor Plinth Area of the plan                        -    45.91 sq.m. (494 sq.ft.)

Total Area of the plan                                         -  91.82 sq.m. (988 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -   8.97 m.  (29.42 ft.)

Minimum Width required for the plot Width   -   12.35 m. (40.50 ft.)

Land area required for this Plan                   -  1.10 Are or 132.39 Sq.yard (2.73  Cents)

  • [message]
    • ##check## Note:
      • The width of the plot is based on 1.00 m. (3.28 ft.) on the left side and  1.20 m. (4.00 ft.) on the right side of the building. The length  of the plot is based on 1.50 m. (5.00 ft.) at the rear side and  3.00 m. (10.00 ft.) at the front side of the building.
